Hägglunds BV206 All-Terrain Vehicle
*** SPECIFICATIONS ***
Weights Ground Pressure and Capacities
| Specification | Front Car* | Rear Car* | Total |
|---|---|---|---|
| Curb weight | 2710 kg | 1620 kg | 4330 kg |
| Payload | 580 kg | 1670 kg | 2250 kg |
| Gross weight | 3290 kg | 3290 kg | 6580 kg |
| Passengers | 5 (6) | 11 | 16 (17) |
| Cargo space | 2.5 m³ (88 ft³) | 5.5 m³ (194 ft³) | 8 m³ (283 ft³) |
* Driver 70 kg (154 lbs) included in payload
** Maximum 200 kg (44 lbs) of the payload can be carried on the roof rack
Maximum trailer weight: 2500 kg (5500 lbs)
| Ground Pressure | Front Car | Rear Car |
|---|---|---|
| Soft terrain, sinking down 200/250mm | 11.6 kPa | 13.0 kPa |
| Hard terrain | 14.2 kPa | 13.6 kPa |
| Maximum load on tow-hook: 2 kN (2000 kp / 448 lbs) | ||

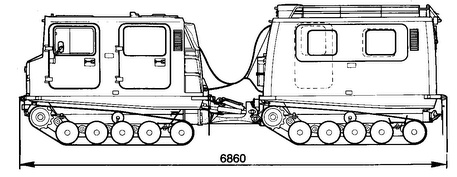

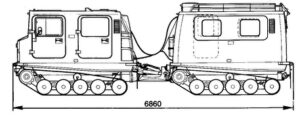

Hägglunds BV206 Dimensions
All schematics, images, and technical materials displayed on this site are reproduced from historical publications, technical manuals, and publicly available sources believed to be in the public domain. They are provided for informational, reference, and educational purposes only. All trademarks, brand names, and product names referenced herein, including but not limited to vehicle manufacturers and models, are the property of their respective owners. This site is not affiliated with or endorsed by any manufacturer or organization. If you are the copyright holder of any material shown and believe it has been used in error, please contact us. Content will be reviewed and promptly removed or corrected where appropriate.

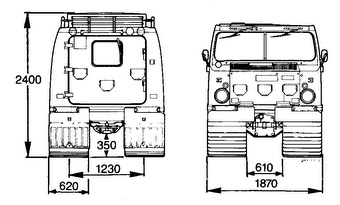

Dimensions
- Length: 6.9 m
- Width: 1.87 m
- Height: 2.4 m
- GVW: 6580 kg
Performance
Max. speed on roads: 55 km/h (34 mph)
Max. speed in water: 3 km/h (2 mph)
Grade, hard surface: 60% (31°)
Deep snow: 30% (17°)
Range on roads: 300 km (186 miles)
Minimum operating temperature: -52°C (-6.6°F)
Engine
Industrial Ford V6 Gasoline 136 hp
Mercedes-Benz 5 cyl. Turbo Diesel 125 hp
Mercedes-Benz 6 cyl. Turbo Diesel 136 hp
Alternative Engine – NEW INSTALLATION
Gearbox
Daimler-Benz W 4A 040
Automatic 4-step forward, 1 reverse
Transfer gearbox manufacturer: Hagglunds Vehicle AB
Gear ratios: High 1.28:1, Low 2.11:1

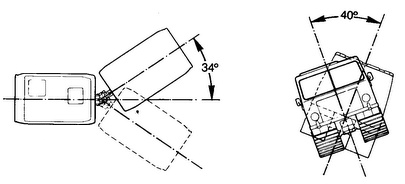

Steering System
Hydrostatic, articulated (Center Point Articulation)
Turning radius: 8 m (26 ft)
Emergency steering: Standard
Tracks
Moulded rubber with cord
Width: 620 mm (24.4 in)
Four track drive
Electrical System
Voltage: 24V DC
Alternator: 55A
Batteries: 105 Ah, 2×12 V
